产品简介:

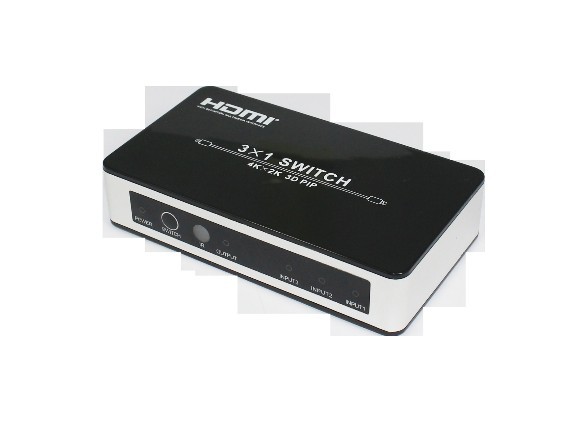

HDS-931P是一款由3路HDMI输入,一路HDMI输出的高清视频切换器,支持1.4。带PIP功能,可随时监控其他两路的画面。
方便很多玩家,当玩家在玩游戏,又有一路在输入是机顶盒,还有一路其他设备的时候,这款产品可以在屏幕上监控到其他两路的画面。 如果机顶盒那边有喜欢的节目,可以马上切换过去。
HDMI Switch 3 x1
User manual
Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference.
n Introduction
This range of high performance HDMIswitch providefour HDMI in toone HDMI output and supportsPIP,4K×2K, 3D, Deep Color. With its 3Gbps bandwidth and the additional features of the latest HDMI standards you can be sure of great HDMISWITCH.
n Features
- 1. 3HDMI input signal switch to 1 HDMI sink device.
- 2. HDCP 1.4 protocol compliant.
- 3. 3D HDMI 1.4a video format support.
- 4. Support PIP (Picture in picture),contain 1 main picture and 3sub-pictures.
- 5. 3D video support including Frame packing for all 3D formats up to a 297MHz TMDS clock.
- 6. Support display resolutions up to 4K x 2K@30Hz,1080P@120Hz,and 1080P 3D@60Hz
- 7. Support deep color 30bit, 36bit, 48bit per pixel.
- 8. Digital audio format, as DTS-HD/Dolby-true-HD/LPCM 7.1/DTS/Dolby-AC3/DSD.
n Package
- 1. HDMISwitch ------------------------------------------------------------------------------ 1PCS
- 2. 5V1A DC Power Supply adaptor ------------------------------------------------------- 1PCS
- 3. Remote Controller ------------------------------------------------------------------------ 1PCS
- 4. Operation Manual ------------------------------------------------------------------------- 1PCS
n Specifications
- 1. Frequency Bandwidth 2.97Gbps
- 2. HDMISwitch Input Ports 3 x HDMI Femaleinputport
- 3. HDMISwitch Output Ports 1 x HDMI Femaleoutputports
- 4. Power Supply DC5V1A
- 5. ESD Protection Human Body Model: ± 8kV (air-gap discharge)
± 4kV (contact discharge)
- 6. Dimensions (mm) 65(W) X118 (D) X25 (H)
- 7. Weight 120g
- 8. Operating Temperature 0°C ~ 40°C / 32°F ~ 104°F
- 9. Storage Temperature -20°C ~ 60°C / -4°F ~ 140°F
- 10. Relative Humidity 20 ~ 90% RH (Non-condensing)
- 11. Power Consumption 1W
n Operation controls and Functions
Front Panel
- 1. POWER: This red LED illuminateswhen the device is connected with power supply.
- 2. SWITCH: Press this button toselect the input source.
- 3. IR: Remote control signalreceive.
- 4. OUTPUT LED: thisgreen LED illuminate whenTV plug in over HDMI cable.
- 5. INPUT LED: These bi-colorLED describecorresponding status.That green illuminateindicates that the signal has plus in and has been selected, that red illuminate indicates that the signal has plus in bus has not been selected,LED get dark indicates that the signal has not plus in.
